AVESTAVAGNEN

Crane trailers for tractors

Avestavagnen offers three different types of trailers with hydraulic cranes for tractors. These are offered in various packages with different equipment depending on your needs.

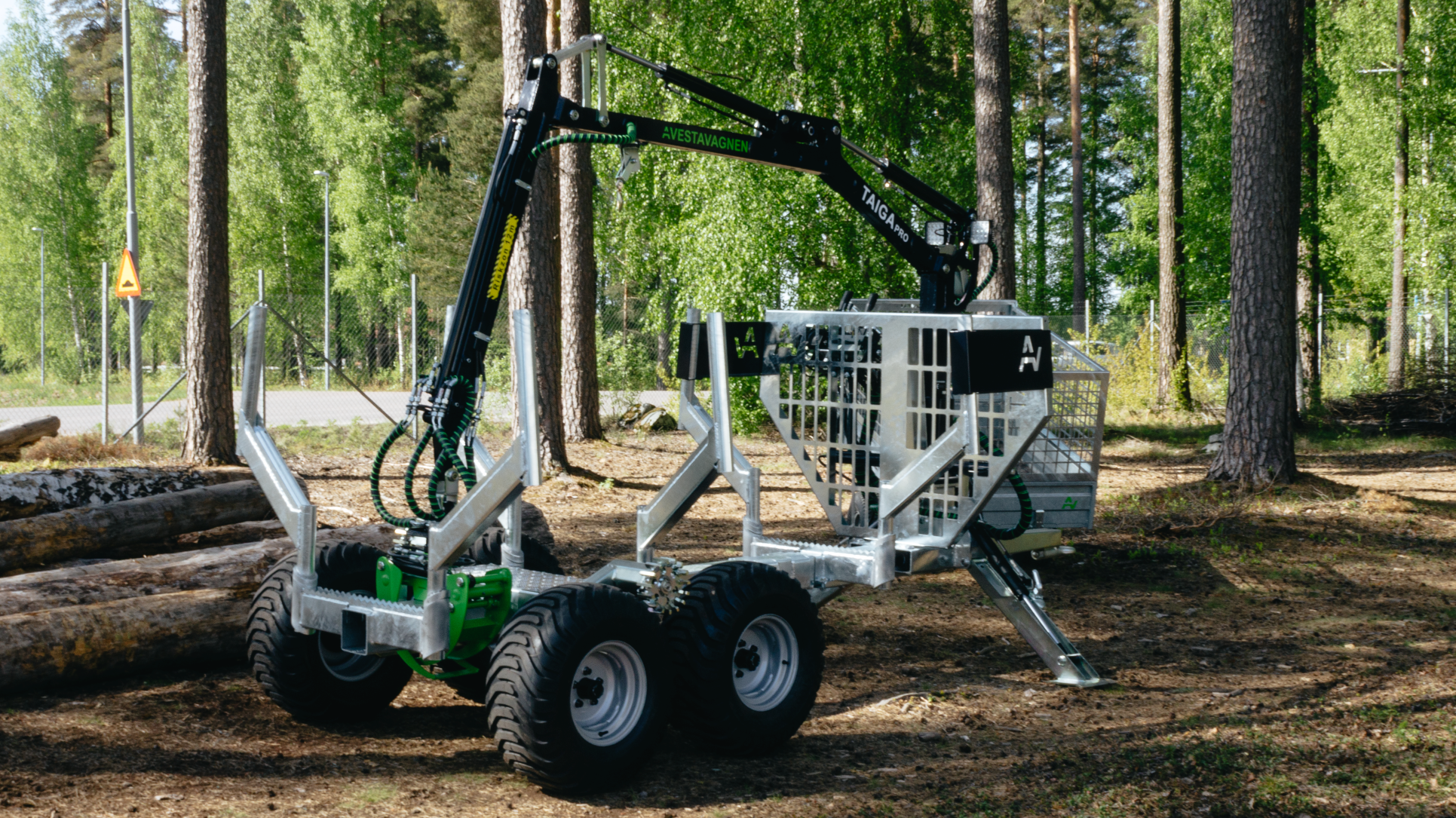

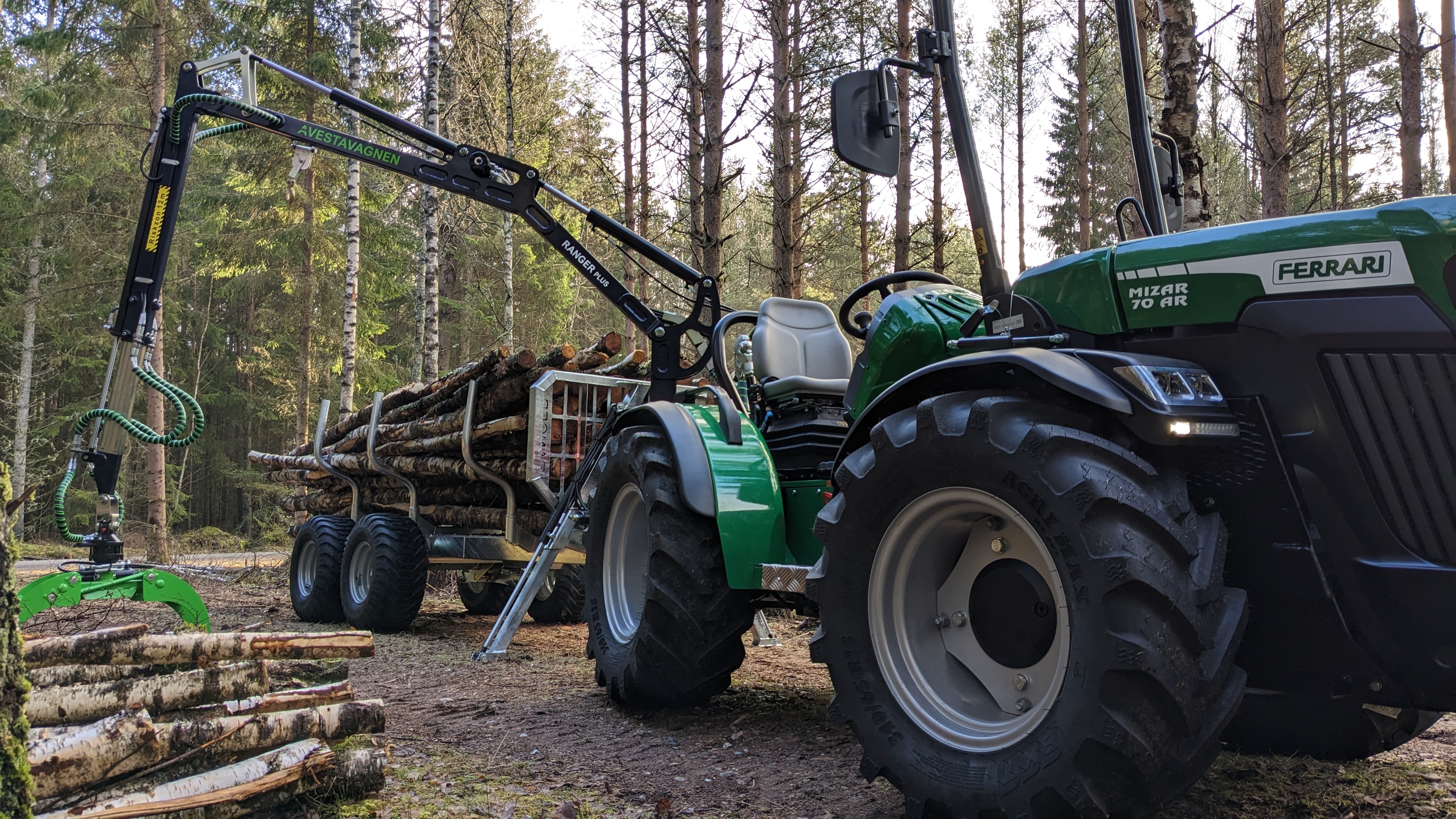

Taiga

The Taiga, which is Avestavagnen's latest addition to the product portfolio, is a robust 4-tonnes trailer developed for smaller tractors. With Avestavagnen's Taiga, you can easily and quickly transform your tractor into a flexible forest machine. The trailer hitch is a standard 34 mm towing eye that fits most tractors (also available with 50 mm tow eye and ball glove).

The Taiga is the perfect friend when cleaning forest and bringing home firewood and timber.

The trailer drive function, tow bar steering and winch are all powered by the tractor's hydraulics via a 3-sectional electrically controlled valve package (mounted on trailer). The trailer drive and frame control are both operated via an instrument box that is easily mounted on the tractor's dash board.

The Taiga carries Avestavagnen's robust and well-proven 4.8 meter crane, which has a reach of just over 5 metres when used together with the tow bar steering function. The trailer is available in four standard versions, but can also be custom-built according to your specific needs.

  • Taiga
  • Crane trailer
TAIGA FOR TRACTORS

Technical specification Taiga

Weight (chassis, crane, wheels, hydraulic unit)
960 kg
Length
430-530 cm
Width
162 cm
Height (lowest possible)
161 cm
Recommended  load daily use

Adjustable tow bar

Risk area

4000 kg
100 cm
12 m

Ranger

The Ranger Tractor is suitable for both professional and private use. The chassis, on which all models in the series are built, has a double frame and an easy-to-climb hydraulic movable bogie.

The cart is an excellent aid when thinning forests in difficult-to-access terrain and when you have to handle firewood and windfall. All hoses are fully integrated and protected inside the construction and thanks to its smooth underside, the risk of getting stuck in difficult terrain is minimized.

A 34 mm towing eye is fitted as standard on our tractor trailers, but it is also possible to get it with a normal trailer ball glove. Trailer drive, towbar steering and winch are all powered by the tractor hydraulic system via a 3-sectional electric valve pack (mounted on the trailer). The trailer drive and tow bar steering etc. are operated via an instrument box that easily can be installed on the tractor dashboard.

ranger for TRACTORS

Technical specification Ranger

Weight (chassis, crane, wheels, hydraulic unit)
741 kg
Length
390 cm
Width
140 cm
Height (lowest possible)
155 cm
Recommended load daily use
Movable bogie
Risk area
2000 kg
60 cm
12 m

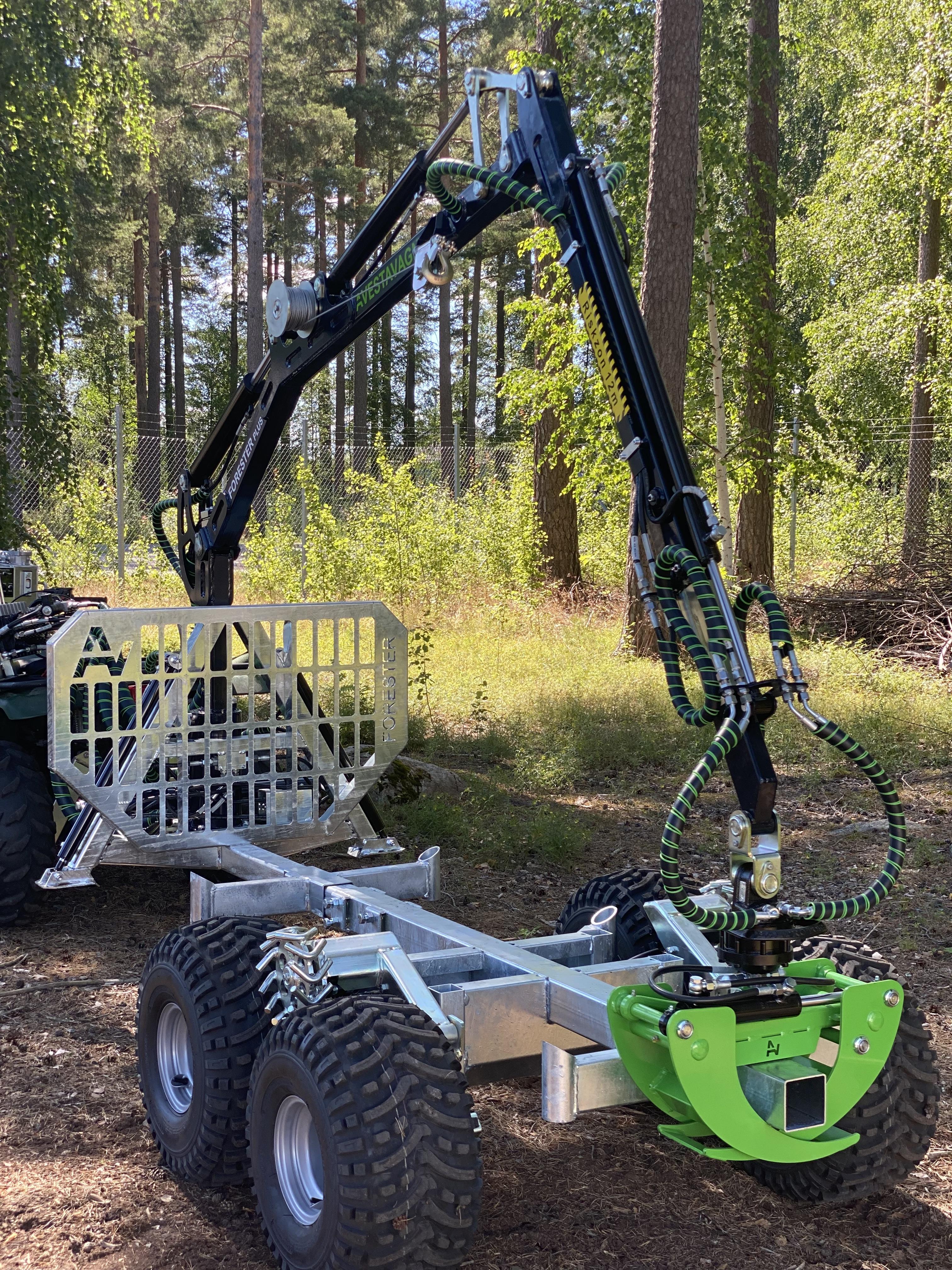

Forester tractor

The Forester tractor is our smallest trailer that loads up to 1.8 tonnes in daily use. Despite its size, as a leisure worker in the forest - clearing, bringing in firewood, etc. - you can work very efficiently with the Forester connected to a mini tractor or iron horse.

A 34 mm towing eye is fitted as standard on our tractor trailers, but it is also possible to get it with a normal trailer ball glove. The trailer crane are powered by the tractor's hydraulics.

FORESTER FOR TRACTORS

Technical specification Forester

Weight (chassis, crane, wheels, hydraulic unit)
364 kg
Length
370 cm
Width
137 cm
Height (lowest possible)
130 cm
Recommended  load daily use

Adjustable tow bar

Risk area

1800 kg
62 cm
12 m
